Radial Chart Rings

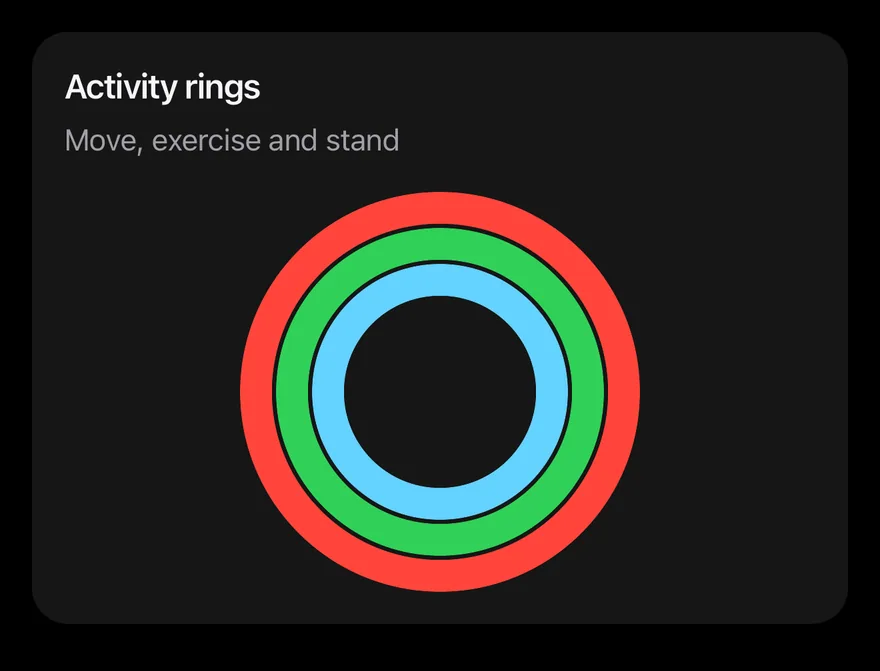

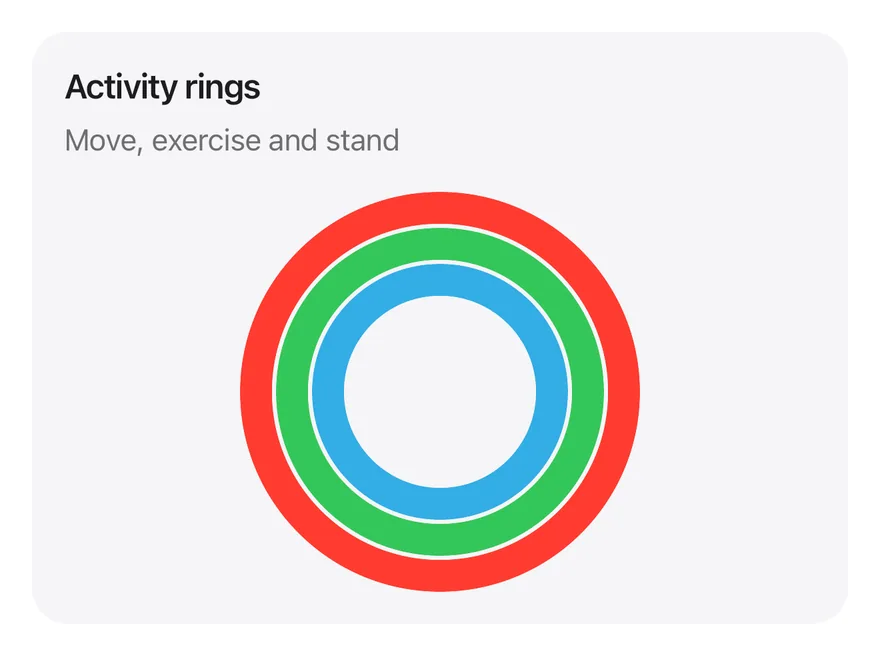

Three concentric activity rings showing move, exercise and stand progress toward their goals.

Radial Chart Rings is an open-source mobile chart from suiss/uim, drawn with react-native-svg for React Native and Expo, with SwiftUI and Jetpack Compose versions built from the same design tokens. The @esuiss/uim CLI copies its source into your project, so you own the code.

iOS

uniwind/components/charts/radial-chart-rings.tsx

import { View } from "react-native"
import Svg, { Circle, G } from "react-native-svg"
import {
  Card,
  CardContent,
  CardDescription,
  CardHeader,
  CardTitle,
} from "@/components/ui/card"
import { type ChartColor, ChartPalette } from "@/components/ui/chart"

const rings: {
  key: string
  label: string
  value: number
  goal: number

swift/Charts/RadialChartRings.swift

import SwiftUI

private let rings: [(key: String, label: String, value: Double, goal: Double, color: Color)] = [
  ("move", "Move", 720, 600, .red),
  ("exercise", "Exercise", 62, 30, .green),
  ("stand", "Stand", 12, 12, .cyan),
]

private let size: CGFloat = 200
private let bar: CGFloat = 16

public struct RadialChartRings: View {
  public init() {}

  public var body: some View {
    Card(.filled, size: .sm) {

kotlin/charts/RadialChartRings.kt

package com.esuiss.ui.charts

import androidx.compose.foundation.Canvas
import androidx.compose.foundation.layout.Box
import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.size
import androidx.compose.runtime.Composable
import androidx.compose.ui.Alignment
import androidx.compose.ui.Modifier
import androidx.compose.ui.geometry.Offset
import androidx.compose.ui.geometry.Size
import androidx.compose.ui.graphics.Color
import androidx.compose.ui.graphics.StrokeCap
import androidx.compose.ui.graphics.drawscope.DrawScope
import androidx.compose.ui.graphics.drawscope.Stroke
import androidx.compose.ui.semantics.clearAndSetSemantics

Three rings drawn with Svg circles colored through ChartPalette. Each entry in rings has a value and a goal, and the filled arc is capped at a full circle. The whole graphic is one accessible image whose label lists each ring's value and goal. Nothing is interactive.

Installation

$ pnpm dlx @esuiss/uim@latest add radial-chart-rings

The CLI also adds what it builds on: Card, Chart.

Manual

Install the dependencies:

npx expo install react-native-svg

Add the pieces it builds on: Card, Chart.
Copy the source into components/charts/radial-chart-rings.tsx:

uniwind/components/charts/radial-chart-rings.tsx

import { View } from "react-native"
import Svg, { Circle, G } from "react-native-svg"
import {
  Card,
  CardContent,
  CardDescription,
  CardHeader,
  CardTitle,
} from "@/components/ui/card"
import { type ChartColor, ChartPalette } from "@/components/ui/chart"

const rings: {
  key: string
  label: string
  value: number
  goal: number

Update the import paths to match your project.

Install the dependencies:

npx expo install react-native-svg

Add the pieces it builds on: Card, Chart.
Copy the source into components/charts/radial-chart-rings.tsx:

nativewind/components/charts/radial-chart-rings.tsx

import { View } from "react-native"
import Svg, { Circle, G } from "react-native-svg"
import {
  Card,
  CardContent,
  CardDescription,
  CardHeader,
  CardTitle,
} from "@/components/ui/card"
import { type ChartColor, ChartPalette } from "@/components/ui/chart"

const rings: {
  key: string
  label: string
  value: number
  goal: number

Update the import paths to match your project.

Install the dependencies:

npx expo install react-native-svg

Add the pieces it builds on: Card, Chart.
Copy the source into components/charts/radial-chart-rings.tsx:

stylesheet/components/charts/radial-chart-rings.tsx

import { View } from "react-native"
import Svg, { Circle, G } from "react-native-svg"
import {
  Card,
  CardContent,
  CardDescription,
  CardHeader,
  CardTitle,
} from "@/components/ui/card"
import { type ChartColor, ChartPalette } from "@/components/ui/chart"

const rings: {
  key: string
  label: string
  value: number
  goal: number

Update the import paths to match your project.

Target iOS 17 or later.
Copy the theme files every view uses:

swift/Theme/Theme.swift

import SwiftUI
import UIKit

struct RGBA: Sendable {
  let red: CGFloat
  let green: CGFloat
  let blue: CGFloat
  let alpha: CGFloat

  init(_ hex: UInt32, _ alpha: CGFloat = 1) {
    red = CGFloat((hex >> 16) & 0xFF) / 255
    green = CGFloat((hex >> 8) & 0xFF) / 255
    blue = CGFloat(hex & 0xFF) / 255
    self.alpha = alpha
  }

swift/Theme/Tokens.swift

import SwiftUI

extension Color {
  public static let surface = Color.adaptive(light: .init(0xFFFFFF), dark: .init(0x000000))
  public static let surfaceSecondary = Color.adaptive(light: .init(0xF5F5F7), dark: .init(0x161617))
  public static let surfaceTertiary = Color.adaptive(light: .init(0xE8E8ED), dark: .init(0x2C2C2E))
  public static let surfaceRaised = Color.adaptive(light: .init(0xFFFFFF), dark: .init(0x1D1D1F))
  public static let label = Color.adaptive(light: .init(0x1D1D1F), dark: .init(0xF5F5F7))
  public static let labelSecondary = Color.adaptive(light: .init(0x6E6E73), dark: .init(0xA1A1A6))
  public static let labelTertiary = Color.adaptive(light: .init(0x86868B), dark: .init(0x86868B))
  public static let labelQuaternary = Color.adaptive(light: .init(0xD2D2D7), dark: .init(0x424245))
  public static let control = Color.adaptive(light: .init(0x000000, 0.04), dark: .init(0xFFFFFF, 0.1))
  public static let controlPressed = Color.adaptive(light: .init(0x000000, 0.12), dark: .init(0xFFFFFF, 0.22))
  public static let controlSelected = Color.adaptive(light: .init(0x1D1D1F), dark: .init(0xF5F5F7))
  public static let controlDisabled = Color.adaptive(light: .init(0x000000, 0.03), dark: .init(0xFFFFFF, 0.05))
  public static let onControlSelected = Color.adaptive(light: .init(0xFFFFFF), dark: .init(0x000000))

Copy the source and every file it uses:

swift/Charts/RadialChartRings.swift

import SwiftUI

private let rings: [(key: String, label: String, value: Double, goal: Double, color: Color)] = [
  ("move", "Move", 720, 600, .red),
  ("exercise", "Exercise", 62, 30, .green),
  ("stand", "Stand", 12, 12, .cyan),
]

private let size: CGFloat = 200
private let bar: CGFloat = 16

public struct RadialChartRings: View {
  public init() {}

  public var body: some View {
    Card(.filled, size: .sm) {

swift/Components/Card.swift

import SwiftUI

public struct Card<Content: View>: View {
  public enum Variant: CaseIterable, Sendable {
    case `default`, filled
  }

  public enum Size: CaseIterable, Sendable {
    case `default`, sm

    var spacing: CGFloat {
      switch self {
      case .default: 24
      case .sm: 16
      }
    }

Add the files to your app target.

Set minSdk to 24 or higher and add the dependencies:

build.gradle.kts

implementation(platform("androidx.compose:compose-bom:2026.09.00"))
implementation("androidx.compose.foundation:foundation")
implementation("androidx.compose.ui:ui")

Copy the theme files every view uses:

kotlin/theme/Theme.kt

package com.esuiss.ui.theme

import androidx.compose.foundation.isSystemInDarkTheme
import androidx.compose.runtime.Composable
import androidx.compose.runtime.CompositionLocalProvider
import androidx.compose.runtime.Immutable
import androidx.compose.runtime.staticCompositionLocalOf
import androidx.compose.ui.Modifier
import androidx.compose.ui.draw.dropShadow
import androidx.compose.ui.graphics.Color
import androidx.compose.ui.graphics.Shape
import androidx.compose.ui.graphics.shadow.Shadow as DropShadow
import androidx.compose.ui.text.TextStyle
import androidx.compose.ui.text.style.LineHeightStyle
import androidx.compose.ui.unit.Dp
import androidx.compose.ui.unit.DpOffset

kotlin/theme/Tokens.kt

package com.esuiss.ui.theme

import androidx.compose.runtime.Immutable
import androidx.compose.ui.graphics.Color
import androidx.compose.ui.unit.dp

@Immutable
data class Colors(
    val surface: Color,
    val surfaceSecondary: Color,
    val surfaceTertiary: Color,
    val surfaceRaised: Color,
    val label: Color,
    val labelSecondary: Color,
    val labelTertiary: Color,
    val labelQuaternary: Color,

Copy the source and every file it uses:

kotlin/charts/RadialChartRings.kt

package com.esuiss.ui.charts

import androidx.compose.foundation.Canvas
import androidx.compose.foundation.layout.Box
import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.size
import androidx.compose.runtime.Composable
import androidx.compose.ui.Alignment
import androidx.compose.ui.Modifier
import androidx.compose.ui.geometry.Offset
import androidx.compose.ui.geometry.Size
import androidx.compose.ui.graphics.Color
import androidx.compose.ui.graphics.StrokeCap
import androidx.compose.ui.graphics.drawscope.DrawScope
import androidx.compose.ui.graphics.drawscope.Stroke
import androidx.compose.ui.semantics.clearAndSetSemantics

kotlin/components/Card.kt

package com.esuiss.ui.components

import androidx.compose.foundation.background
import androidx.compose.foundation.border
import androidx.compose.foundation.layout.Arrangement
import androidx.compose.foundation.layout.Column
import androidx.compose.foundation.layout.ColumnScope
import androidx.compose.foundation.layout.Row
import androidx.compose.foundation.layout.RowScope
import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.padding
import androidx.compose.foundation.shape.RoundedCornerShape
import androidx.compose.foundation.text.BasicText
import androidx.compose.runtime.Composable
import androidx.compose.runtime.CompositionLocalProvider
import androidx.compose.runtime.compositionLocalOf

kotlin/components/Content.kt

package com.esuiss.ui.components

import androidx.compose.runtime.compositionLocalOf
import androidx.compose.ui.graphics.Color
import androidx.compose.ui.text.TextStyle
import androidx.compose.ui.unit.Dp
import androidx.compose.ui.unit.dp

val LocalContentStyle = compositionLocalOf { TextStyle.Default }

val LocalContentColor = compositionLocalOf { Color.Unspecified }

val LocalIconSize = compositionLocalOf { 20.dp }

Update the com.esuiss.ui package names to match your project.

Usage

import { RadialChartRings } from "@/components/charts/radial-chart-rings"

<RadialChartRings />

Replace the values, goals and colors in rings, and change SIZE and BAR to resize the rings. The component takes no props.
